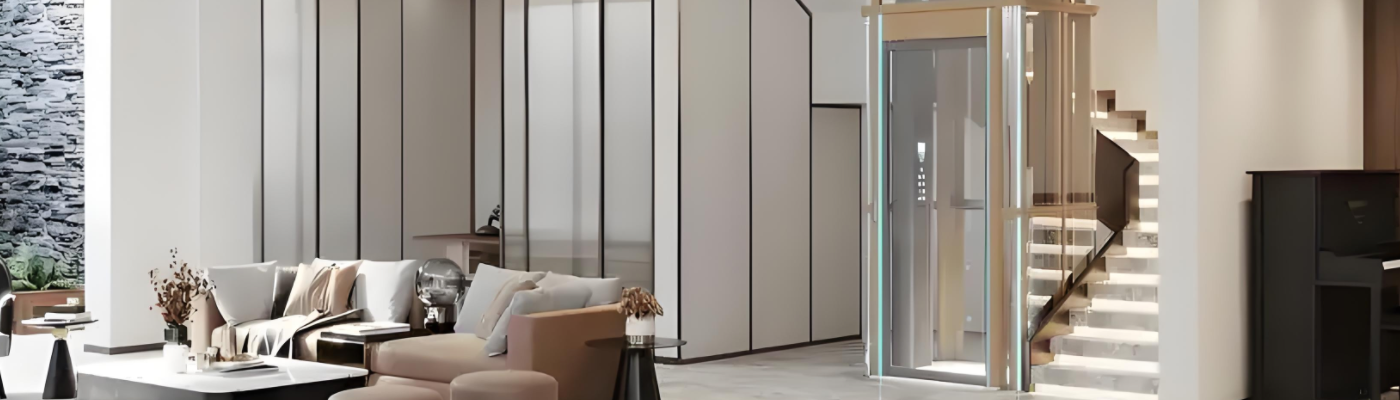

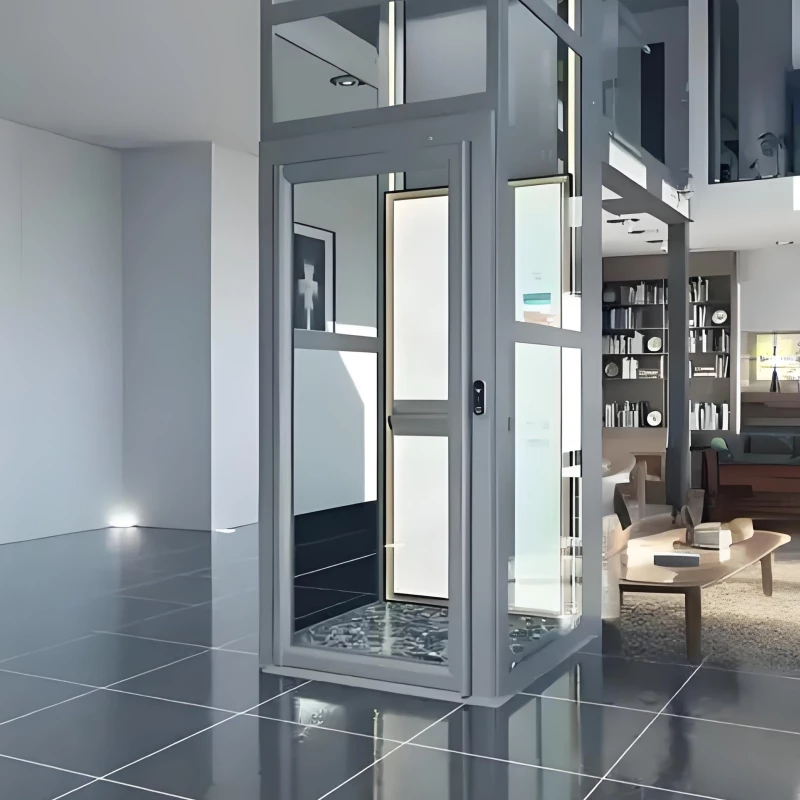

Platform Home Elevator is designed to be that extra feature of your home

The household elevator series products are applicable to the elevators used by single family residential users such as villas and townhouses.

● Dedicated host system
● Intelligent control system
● More flexible space customization to improve space utilization
● Comfortable ride experience, smoother start and stop
● Available in various colors, custom design available
● A perfect combination of design aesthetics and spatial ingenuity
● Can be seamlessly integrated into various home styles

Tel: +86 18026299320 Email: fjelevator@mail.fjascensores.com

Contact Now

+ Inquire

Downloads

The Home Lift range delivers quiet operation, comfort, and safety with a refined and highly interchangeable design, an ideal solution for private homes and public facilities.

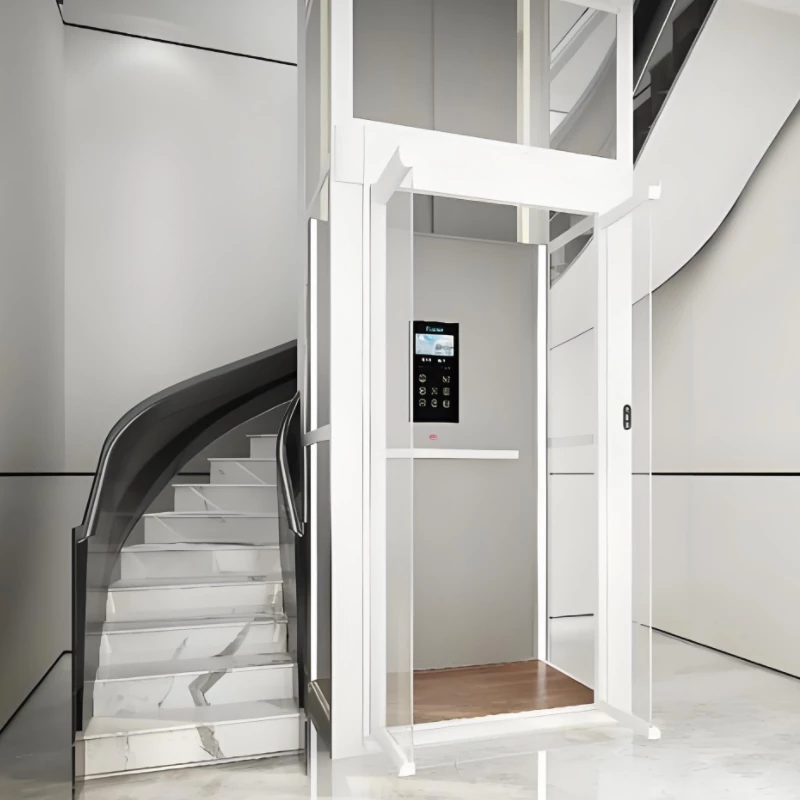

Home elevator with flexible and changeable platform offers white and transparent glassswing door, decoration mirror with LED light, transparent glass automatic double dooropenings, observation glass well, over 200 kinds of RAL elevator colors. it is applicable forhome environment installation such as high grade villa, light-rise duplex apartment etc

Used by sinole family residenial users such as vilas and ownhouses. The new car frame structure design is applied to improve the shat utiizaton rate; , it is a household elevator product with highperfomance. ,and adds some humanized functions to its oriainal functions

The advanced VFfull-closed-loop servo controltechnology is applied to the door machine system,and anew generation of permanent magnet synchronous motorand synchronous door knife integration technology isadopted to realize the synchronous opening and closingof the hall door and truly achieve high accuracy ofelevator door opening and closing control and stableoperation And high efficiency and energy saving.

The new generation of high-intelligence and high-integration household elevator control cabinet not only hasall the standard functions of the all-in-one controller,butalso incorporates the ARD function and the Internet ofThings technology;the entire control cabinet is small andexquisite,noble and elegant,just like a rare item Electricalartwork can be flexibly prevented from being anywhere nearthe shaft.

Consume less energy whileachieving excellent perfomance.Household voltage (220V)can work normally,no need to specially modify the powersupply system,and it is compatible with industrial voltage,saving you worry and effort.High operating efficiency,energy saving and environmental protection,provide youwith a green and comfortable elevator environment.

Comparedwithconventional tractionmachine.Steel belt typepermanent magnet synchronous gearess traction machine,smallsize;light weight;traction shaft diameter is only 100mm,and highperformance;low energy consumption;low noise,all bearings areequipped with imported bearings,which prolong the service lifte of thetraction machine.

In the event of a power failure, the elevator enters the emergency leveling mode, bringing the elevator to a position near to the leveling floor and opening the doors.

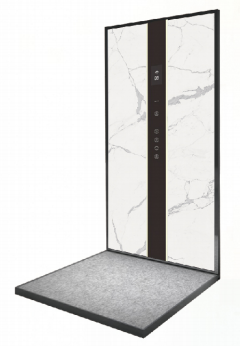

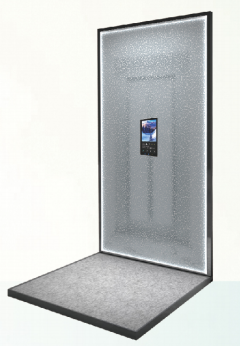

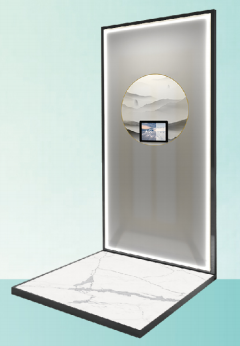

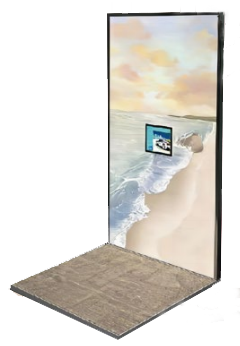

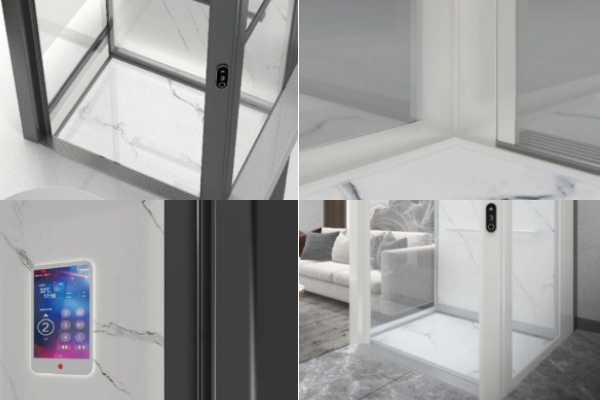

The platform is equipped with safety frames on three sides. If the frame is pressed or obstructed by objects, the elevator will immediately stop.

Pre-sett at least three emergency contacts. In case of elevator malfunction, the user can activate the one-button emergency call for assistance.

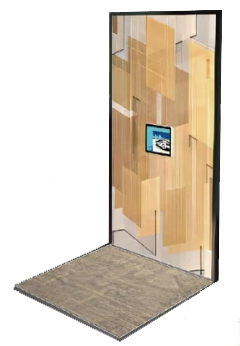

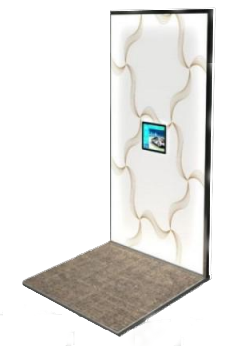

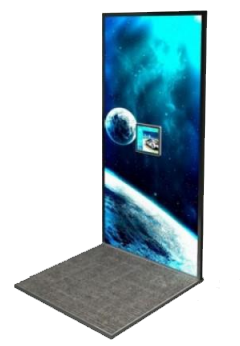

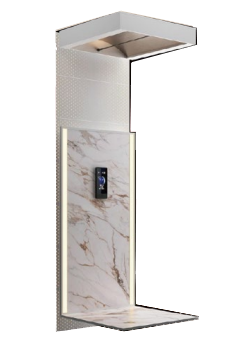

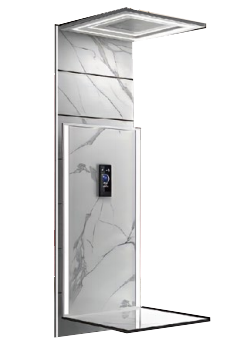

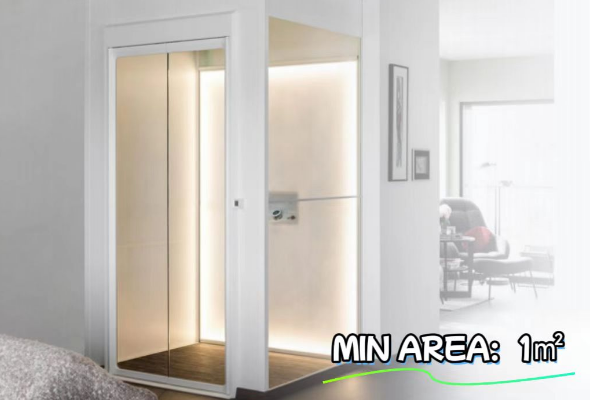

The platform design eliminates the need for side walls, saving 15% of shaft space and optimizing the use of the elevator's internal space.

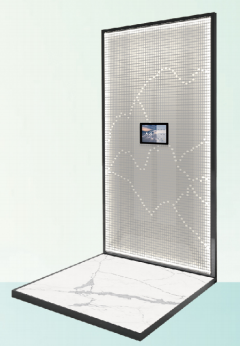

New steel-band traction type home elevator gets 3-side inlaid typefor the car. Center decoration can be removed, it applies differentmaterials with the stronger inter-changeability. lt can satisfy theclients' diverse and individual requirements.

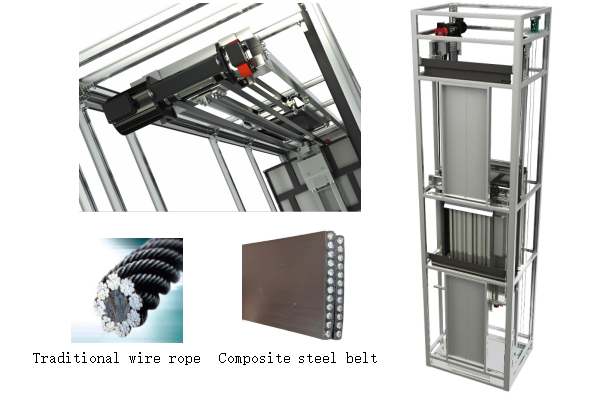

Compared with the traditional wire rope:

1. Polyurethane (PU) material layer without lubrication.
2. Its life is two or three times higher than that of traditional wire rope
3. lt is more bendable. lt increases the contact area with drive wheel. lt is
more effective and energy-saving.

HIGH-END CUSTOMIZED COLOR OPTIONAL

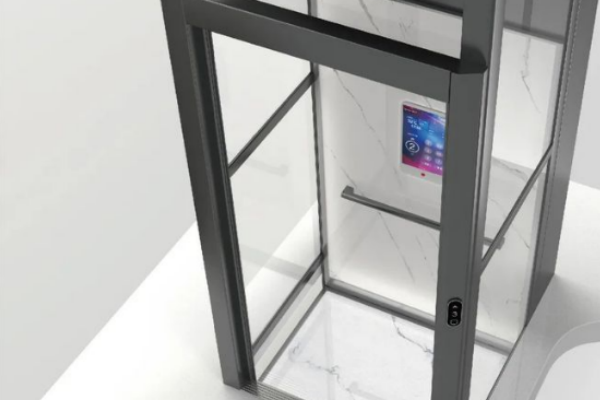

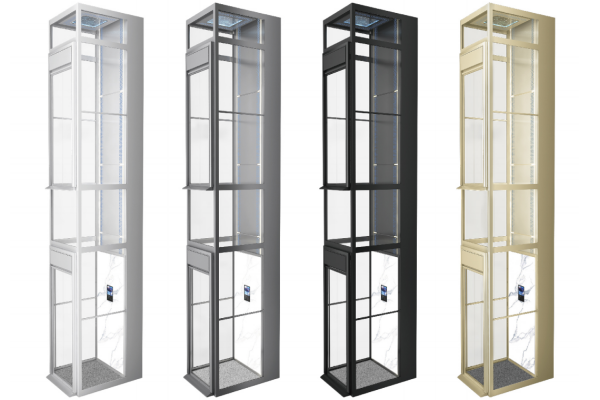

Aluminum Alloy Derrick

Independent frame gass design withot additonal constructon costs. Trarsboent and tegrated into the interor. instaltionlocation optional, corrosion resistant kong life ayde. Selection of industrial grade aluminum aloy, glass with safetylaminated gass.

Note: Standard white is for the whole elevator. Multiple color options are available forelevators. Well wall and elevator door can match with different colors.

Platform Home Elevator
Rated Load	≥400Kg
Running speed	0.4m/s
Max.Travel Height	≤12M
Min.Pit Dipth	100mm
Min.Headroom	≥2400mm
Platform/car size(WxD)	21000x750mm
Hoistway size(WxD)	21150x1150mm
Reserved size(WxD)	≥1200x1200mm
Open door net size(WxH)	700x2000mm
Hoistway standard	Aluminum alloy well frame
Note:Only for reference, final manufacture please follow contract.

Advanced technology, exquisite structure

The synchronous gearless tracion machine has the characterlstics of compact appearance, energy savingand consumption reduction.

Just like ordinary household appliances, it is convenient and practical, using a sinale-phase 220V input power.

Flexible solution, excellent performance

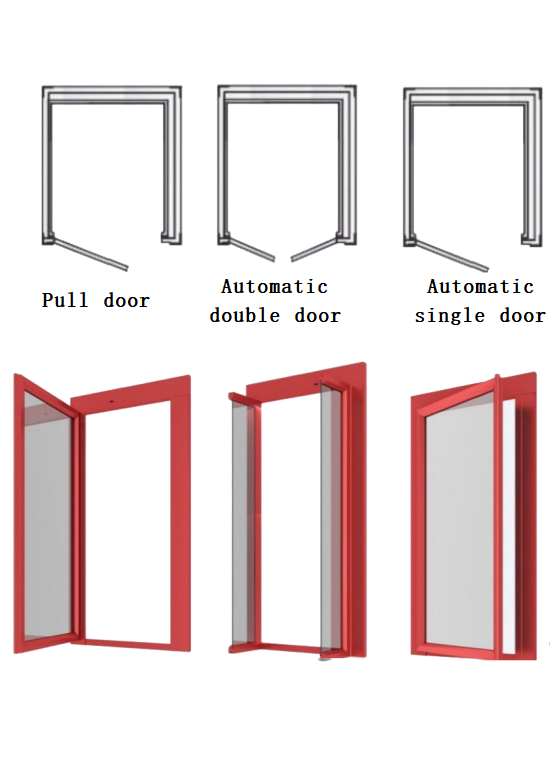

Choice of single door or through door.

Optional door opening methods will help optimize residential traffic.

Optional side door or center door of different sizes

Stable operation, reliable guarantee

For emergency power supply, the elevator will choose the nearest leveling floor and open the door when thepower fails.

Fast response, safe operation

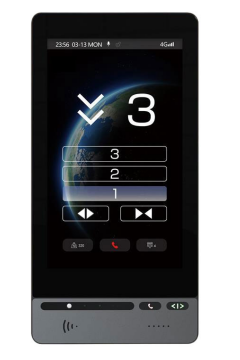

in the event of an emergency, the phone module can be turned on, and passengers can call the outsideworld for help throuah phone calls.

Smaller parts, bigger cars

Larger cars can be placed in the standard hoistway, giving passengers a more spaclous and comfortablestairway.
The top height of 3000mm can be equipped with a single-floor top car with a height of 2300mm.
The bottom pit only needs to be 300mm or more.

Various installation methods
