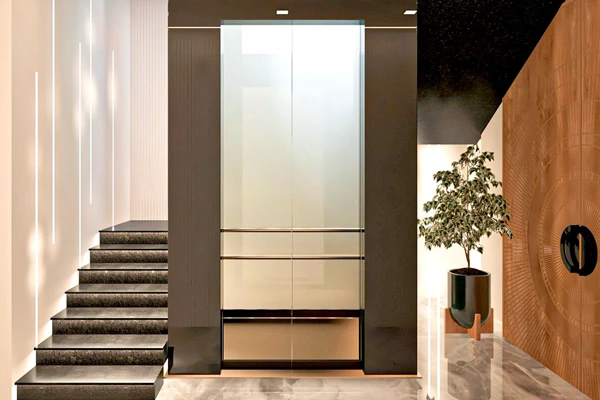

Luxury Villa Elevator: Stable,Quiet,Exquisite-Tasteful
The household elevator series products are applicable to the elevators used by single family residential users such as villas and townhouses.
● The control system chooses the micro-computer / PLC control.
● It employs T50 guide rail.
● It adopts the section material for the door guide rail
● It employs YJ120K serial single speed tranction machine.
● It adopts the safety contact switch for the landing door interlocking.
● It adopts the hairline stainless steel for the car, hoistway door,jamb, calling panel.
● It employs T50 guide rail.
● It adopts the section material for the door guide rail
● It employs YJ120K serial single speed tranction machine.
● It adopts the safety contact switch for the landing door interlocking.
● It adopts the hairline stainless steel for the car, hoistway door,jamb, calling panel.
The Villa Lift range delivers quiet operation, comfort, and safety with a refined and highly interchangeable design, an ideal solution for private homes and public facilities.
Adopt advanced hydraulic transmission technology, realize stable and quiet operation, and bring an unprecedented comfortable experience to your living space. This hydraulic ladder has an exquisite design, elegant appearance, smooth lines, and high-end material selection, which makes it not only a piece of practical household equipment but also a work of art that shows taste.
Implement international standard design and menu.fracturing strictly, check the whole process , test all parts to ensure the safe operation of the elevator.
1. Dual Safety Clamp System
Elevator safety gear is crucial. It clamps the car on the rail when the elevator has a fault-related slide or overspend. A double system with two sets on the car's main and counterweight rails boosts the safety factor.
2. Unintended Car Movement Protection (UCMP)
If the elevator moves unexpectedly at the leveling position with the door open, UCMP stops it.
3. Power Outage Self-Rescue System
When power fails and passengers are trapped, the system confirms the state and stops the elevator at the nearest landing via battery.
4. Multi-Beam Screen Protection
Multi-infrared beam covers door height. When blocked, closing the door opens quickly for passenger safety.
Elevator safety gear is crucial. It clamps the car on the rail when the elevator has a fault-related slide or overspend. A double system with two sets on the car's main and counterweight rails boosts the safety factor.
2. Unintended Car Movement Protection (UCMP)
If the elevator moves unexpectedly at the leveling position with the door open, UCMP stops it.
3. Power Outage Self-Rescue System
When power fails and passengers are trapped, the system confirms the state and stops the elevator at the nearest landing via battery.
4. Multi-Beam Screen Protection
Multi-infrared beam covers door height. When blocked, closing the door opens quickly for passenger safety.
1. Energy Recovery System
Converts DC to AC and returns to grid, replacing resistance for energy-saving.
2. LED Lighting System
The car uses LED, which is more energy-saving and longer-lived. Intelligent tech protects better.
3. Electrical Automatic Energy Saving System
In an idle state with no call, auto turns off the fan and lighting to save power.
4. Permanent Magnet Synchronous Host
High-precision tech with motor, efficient, low-energy, green, and energy-saving.
5. Frequency Conversion Control System
Complies with ROHS, low noise, harmonic suppression, and long life.
Converts DC to AC and returns to grid, replacing resistance for energy-saving.
2. LED Lighting System
The car uses LED, which is more energy-saving and longer-lived. Intelligent tech protects better.
3. Electrical Automatic Energy Saving System
In an idle state with no call, auto turns off the fan and lighting to save power.
4. Permanent Magnet Synchronous Host
High-precision tech with motor, efficient, low-energy, green, and energy-saving.
5. Frequency Conversion Control System
Complies with ROHS, low noise, harmonic suppression, and long life.
1. One-Key Dial
Starts intelligent module to dial set numbers as per setting.
2. Face Recognition System
Combines functions for contactless ID and auto calls, safe and efficient.
3. Fingerprint Recognition
After correct reg, authorize floor. Set fingerprint/password. On verification, auto-register the floor.
4. Non-Touch Infrared Induction Button
Uses infrared. Passengers trigger switch without touch, for antibacterial environments.
5. Intelligent Voice Call System
The passenger wakes up the system and enters the floor by voice. The control system responds and executes.
Starts intelligent module to dial set numbers as per setting.
2. Face Recognition System
Combines functions for contactless ID and auto calls, safe and efficient.
3. Fingerprint Recognition
After correct reg, authorize floor. Set fingerprint/password. On verification, auto-register the floor.
4. Non-Touch Infrared Induction Button
Uses infrared. Passengers trigger switch without touch, for antibacterial environments.
5. Intelligent Voice Call System
The passenger wakes up the system and enters the floor by voice. The control system responds and executes.
Safe and reliable elevator accessories
 Reinforced Structural Components
All components are made of thickened materials, offering strong load-bearing capacity and enhanced safety.
|  Imported Silent Pump Station
Equipped with an additional load-free proportional valve, it not only has low noise but also provides a jolt-free sensation during upward and downward travel, ensuring a comfortable ride. The pump station is installed with an emergency descent valve, allowing manual descent and automatic leveling in the event of a power outage.
|  Infrared light curtain protection
technology The "protective net" of the infrared light curtain covers the entire car door. When a person or cargo is detected to enter or exit the car, the Home elevator door automatically opens and is in the open state to ensure the safety of passengers in and out .
|
 Elevator ARD Automatic Rescue Device
When the elevator experiences a power outage or malfunction, the ARD (Automatic Rescue Device) can automatically supply power to the elevator drive, allowing the elevator to reach the nearest floor and open the doors. This helps prevent passengers from being trapped inside, providing an additional layer of safety. |  Safety Gear
When the Villa elevator exceeds the limit speed the safety gear is activated by the linkage of the overspeed Governor to ensure that the Villa elevator can be safely stopped.
|  Elevator Buffer
It can absorb the abnormal impact energy of the elevator to the greatest extent as a way to ensure the safety of Villa elevator passengers which is the third protection.
|
Portal Frame Villa
Elevator
Elevator
It is the fifth generation of elevators in the world, The twoguide ralls are installed on both sides of the car, and theforces on the two sides of the car are balanced, so there isalmost no sound of the guide ralls with smoother move.more comfortable experience and longer life.
Features of Portal
Frame Villa Elevator
Frame Villa Elevator
Two guide rails are installed on both sides of the car, justlike two people carry a sedan-chair and the forces on bothsides of the car are even, so you wlll feel more stable,which is beneficial to extend the life.
Steel belt villa elevator
Steel belt villa elevator adopts more energy-saving, environmental protection, and durable composite steel belts,equipped with various international advanced technologiessuch as high-efficiency energy-saving mainframes,frequency conversion door machines, and safe and rellablelight curtain door protection devices, bringing the development of vertical transport elevators into a new phase.
Compared with
traditional wire rope:
traditional wire rope:
1.The polyurethane material layer has no requirement forlubrication.
2.lts life is 2-3 times as long as that of traditional steelwire rope
3. lt is easier to bend, increasing the contact area with thedrive wheel, which can save more energy with high eff-ciency.
2.lts life is 2-3 times as long as that of traditional steelwire rope
3. lt is easier to bend, increasing the contact area with thedrive wheel, which can save more energy with high eff-ciency.
Backpack type villa
elevator
elevator
Counterweight and guide rails of backpack type villaelevator are installed on the same side ofthe carwith and low requirement for elevator shaft, just likea student carrying a schoolbag.
Feature of backpack
type villa elevator
type villa elevator
Backpack type villa elevator is mainly for narrow anddeep shafts in the home. At the same time, it is alsothe optimal cholce for 90 "double door elevators.
Hydraulic drive home elevator
Applies fully imported GMV oil cylinder, pump station, and control valve from Italy. Its precision proportional valve can fulfill step-less speed regulation with smooth elevator operation.
Features of Hydraulic Drive Home Elevator
1. Requires no high requirements or costly machine room at the well's upper part, which can be as high as the roof.
2. Flexible machine room setting: The hydraulic drive system uses an oil pipe to transfer power. The machine room can be beside the well, covering 2 - 3 m².
3. High well utilization rate: No counterweight needed, enhancing well area utilization.
4. Low well structure intensity requirements: Vertical loads act on the well ground through the hydraulic cylinder, having low requirements for the well wall and top's building performance.
Features of Hydraulic Drive Home Elevator
1. Requires no high requirements or costly machine room at the well's upper part, which can be as high as the roof.
2. Flexible machine room setting: The hydraulic drive system uses an oil pipe to transfer power. The machine room can be beside the well, covering 2 - 3 m².
3. High well utilization rate: No counterweight needed, enhancing well area utilization.
4. Low well structure intensity requirements: Vertical loads act on the well ground through the hydraulic cylinder, having low requirements for the well wall and top's building performance.
Advanced technology, exquisite structure
The synchronous gearless tracion machine has the characterlstics of compact appearance, energy savingand consumption reduction.
Just like ordinary household appliances, it is convenient and practical, using a sinale-phase 220V input power.
Just like ordinary household appliances, it is convenient and practical, using a sinale-phase 220V input power.
1
Flexible solution, excellent performance
Choice of single door or through door.
Optional door opening methods will help optimize residential traffic.
Optional side door or center door of different sizes
Optional door opening methods will help optimize residential traffic.
Optional side door or center door of different sizes
2
3
Stable operation, reliable guarantee
For emergency power supply, the elevator will choose the nearest leveling floor and open the door when thepower fails.
4
Fast response, safe operation
in the event of an emergency, the phone module can be turned on, and passengers can call the outsideworld for help throuah phone calls.
5
Smaller parts, bigger cars
Larger cars can be placed in the standard hoistway, giving passengers a more spaclous and comfortablestairway.
The top height of 3000mm can be equipped with a single-floor top car with a height of 2300mm.
The bottom pit only needs to be 300mm or more.
The top height of 3000mm can be equipped with a single-floor top car with a height of 2300mm.
The bottom pit only needs to be 300mm or more.

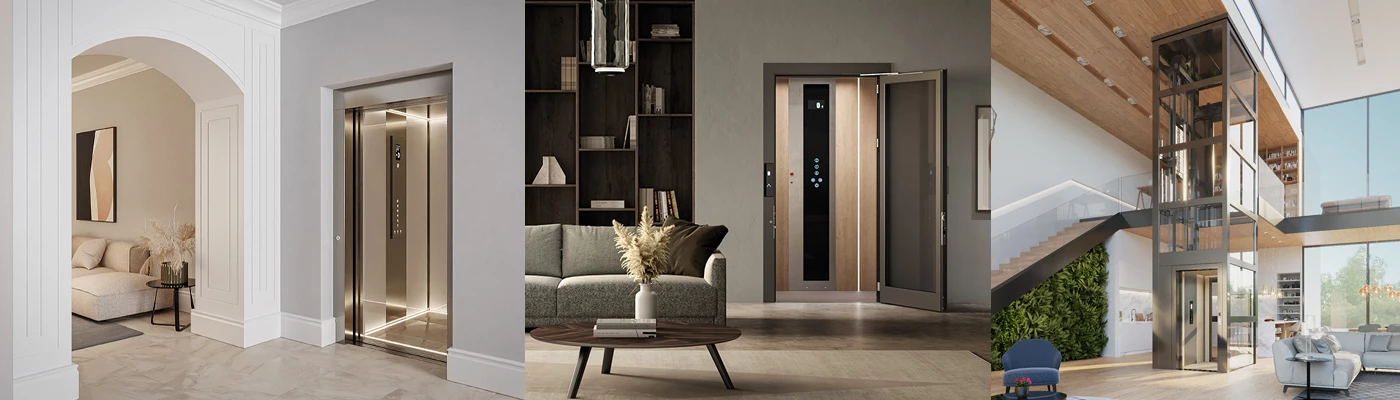

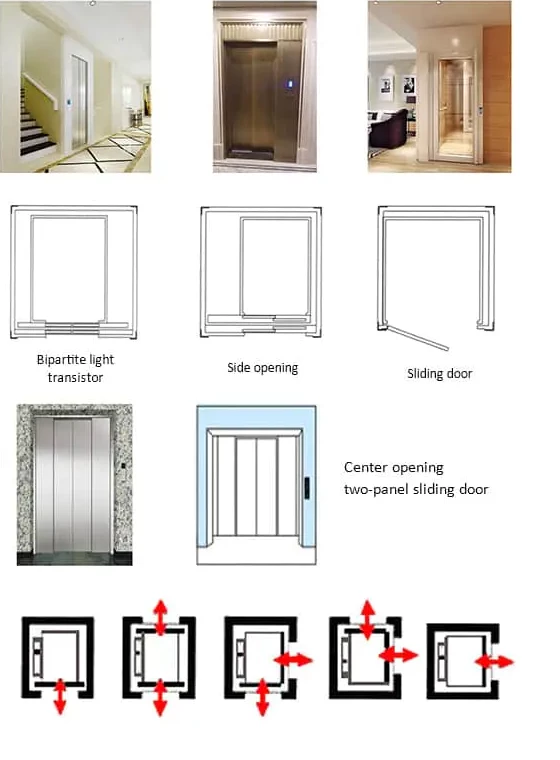

Various installation methods
Various opening methods

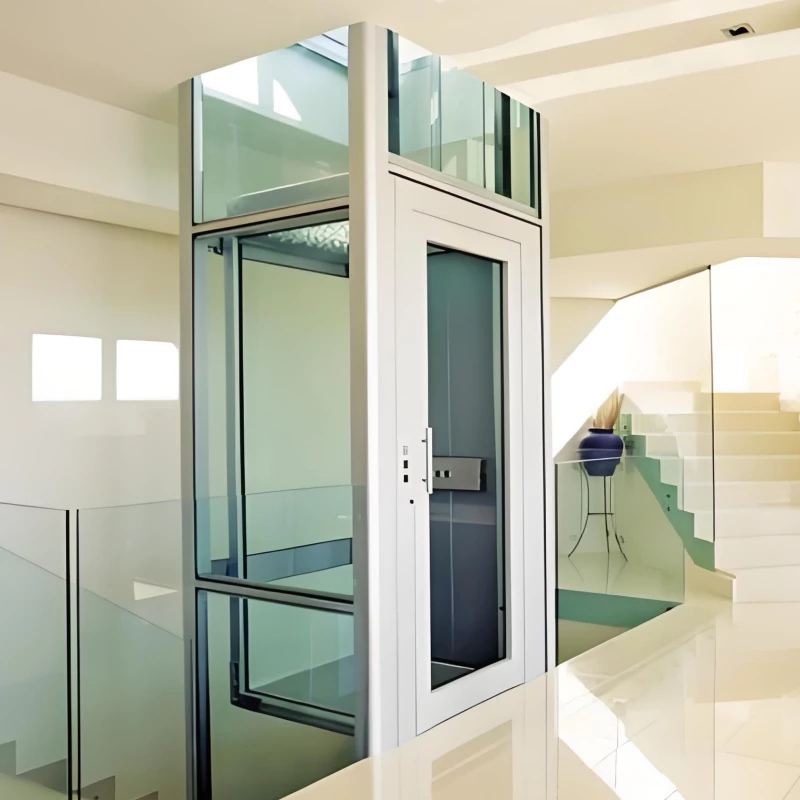

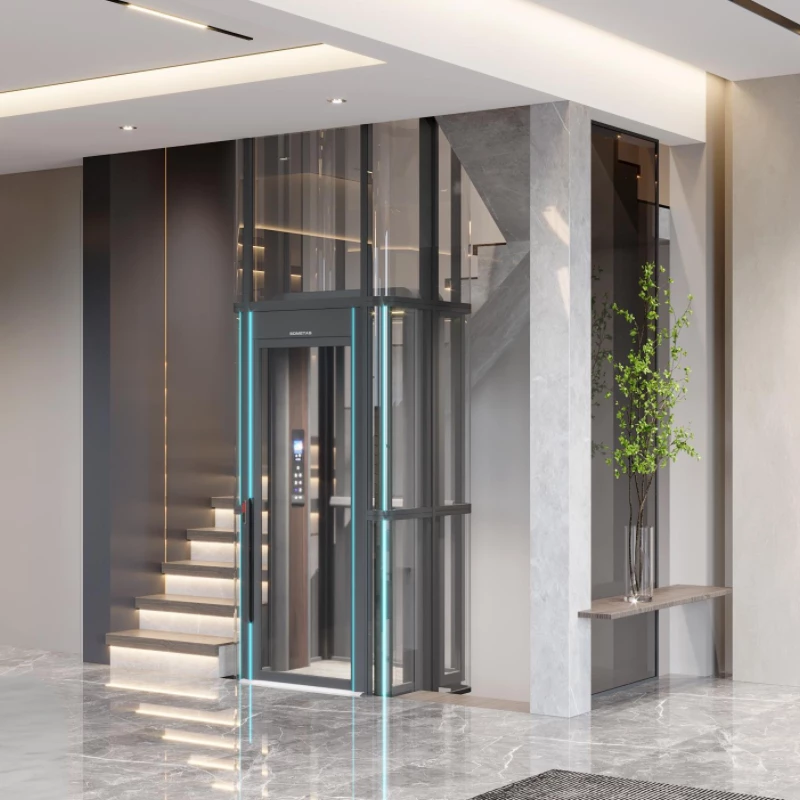

Villa elevator no wall solution plan
Aluminum Alloy Derrick
Independent frame glass design without additional construction costs. Trarsboent and tegrated into the interor. instaltionlocation optional, corrosion resistant kong life ayde. Selection of industrial grade aluminum alloy, glass with safety laminated grass.
Steel Structure Derrick
Cost-effective, packaging and design style of the outer board by the decoration unit is the same in the later stage installation location can be optional, surface spraying rust-proof treatment, corrosion resistance.
| RatedLoad(KG) | 250 | 320 | 400 |
| People No. | 4 | 5 | 6 |
| P+Q Max.(KG) | 1200 | ||
| Max.Speed(M/S) | 0.3M/S (ASINZS1735.18),0.3M/S(GB/T-21739-2008) | ||
| Min.Pit Dipth(MM) | 100 | ||
| Min.Headroom(MM) | 2600 | ||
| Max.Travel Height(MM) | 12000 | ||
| Car Entrance No | Max.3 entrances | ||
| Can Choose | Swing Door | ||
| Note:Only for reference, final manufacture please follow contract | |||

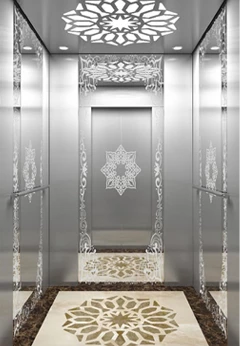

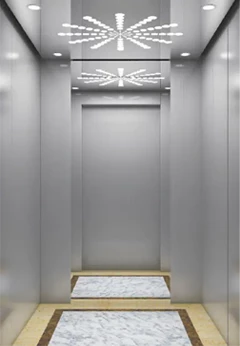

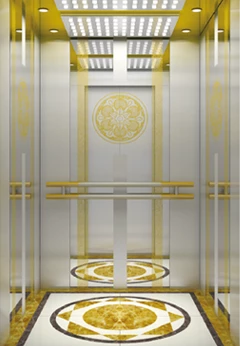

Style
CMCP-001
CMCP-001
CMCP-001
CMCP-001
CMCP-001

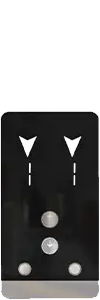

COP&LOP
CMP-01(Standard)
CMP-01(Standard)
CMP-01(Standard)
CMP-01(Standard)
CMP-01(Standard)
Landing Door Series
CMLD-06
CMLD-06
CMLD-06
CMLD-06
CMLD-06
Ceiling
CMC1
CMC1
CMC1
CMC1
CMC1
Handrail
CMC1
CMC1
CMC1
CMC1
CMC1
Floor
CMC1
CMC1
CMC1
CMC1
CMC1
