A Safety-Centered Technology Platform for Escalators and Moving Walks
High-efficiency drive systems with stable operation control
Smooth starting and stopping for enhanced passenger comfort
Intelligent operating status monitoring and fault warning
Control logic adaptable to different load conditions and operating environments
High-Standard Escalator and Moving Walk Systems
In modern urban public transportation systems and large public buildings, escalators and moving walks have become essential infrastructure for connecting passenger flows and improving circulation efficiency.
Designed for public-transport environments characterized by high load, long operating hours, and strict safety requirements, we offer an integrated escalator and moving walk solution that is technology-driven and safety-based, meeting the diverse needs of different buildings and transportation scenarios.
Advanced Product Technology · Reliable Operation Assurance
This product series adopts mature and proven drive systems and intelligent control technologies, combined with high-strength structural design, ensuring stable, quiet, and efficient operation even under high passenger flow and continuous duty conditions.
Through optimized design of key components, the system achieves energy-efficient operation, reduced maintenance costs, and an extended service life. It is well suited for public transportation applications such as metro systems, airports, commercial complexes, and transportation hubs.
Product Functions and Standard Configuration
Standard Functions of Escalators and Moving Walks
High-efficiency drive systems with stable operation control
Smooth starting and stopping for enhanced passenger comfort
Intelligent operating status monitoring and fault warning
Control logic adaptable to different load conditions and operating environments
As public-transport-type escalators and moving walks, these products are designed from the outset to meet high-frequency usage standards, ensuring reliable performance throughout long-term operation.
Function
Static electricity protection
Remove static electricity raised from running of steps
Emergency stop button
Push the emergency stop button to stop the escalator/passenger conveyor operation
Control device for handrail breakage
When the handrail is broken, the escalator will automatically stop the operation
Handrail entry safety protection
Protection against risk of foreign matter being jammed into handrail entry
Main drive chain safety protection
Protection against risk of drive chain breakage or over long
Over-speed protection
Protection against risk of speed being over 20% of rated speed
Under-speed protection
Protection against risk of speed less than 80% of rated speed
Un-intentional reversal protection
Protection against risk of unintentional reversal rotation
Lack of phase, error phase protection
Protection against risk of phase failure
Short circuit protection
Protection against risk of short circuit
Over-load protection
Protection against risk of motor continuously overload
Step sagging protection
Protection against risk of step breaking and sagging
Step chain safety protection
Protection against risk of step chain breakage or over long
Comb safety guard
Protection against risk of foreign matter being trapped into comb tooth of step/pallet
Comprehensive Safety System · Multi-Layer Protection Design
The system integrates multiple standard safety devices covering key components such as the drive unit, speed control, chains, steps, handrails, and braking system, providing comprehensive protection against operational risks.

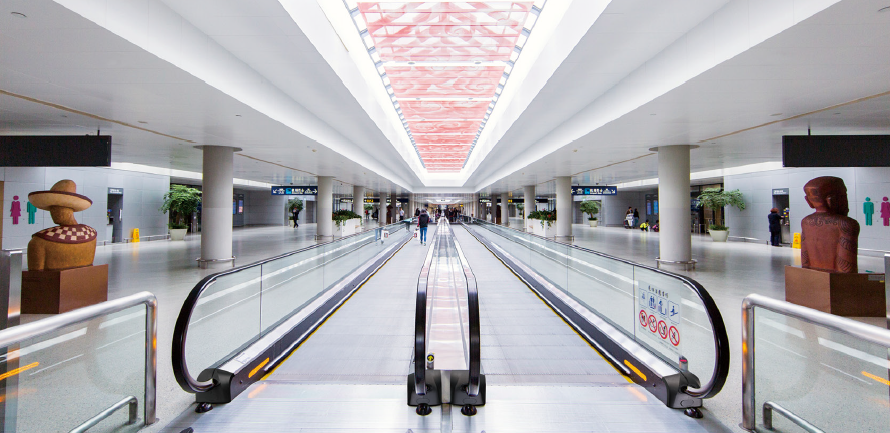

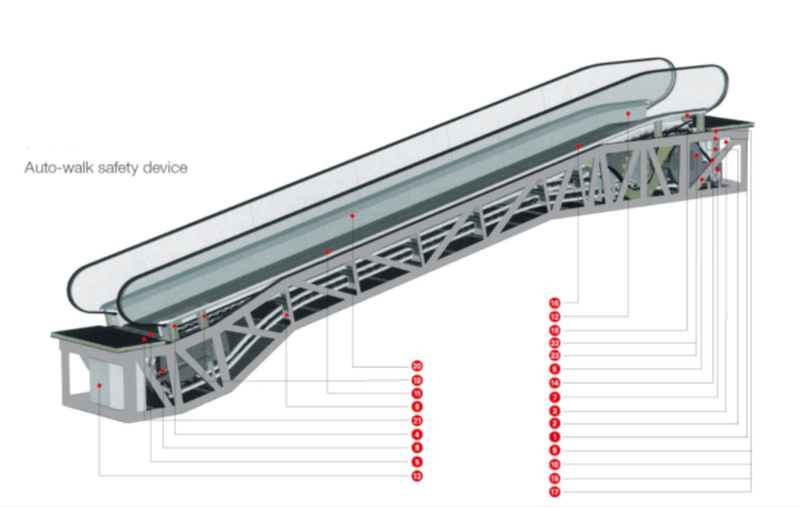

Moving Walk Safety Devices
Dedicated safety detection and protection systems are configured specifically for the operating characteristics of moving walks, ensuring passenger safety and stable operation during long-distance transportation.
Optional Safety Devices
According to specific project requirements, higher-level safety device configurations can be selected to meet special operating conditions or enhanced safety standards, enabling flexible customization.

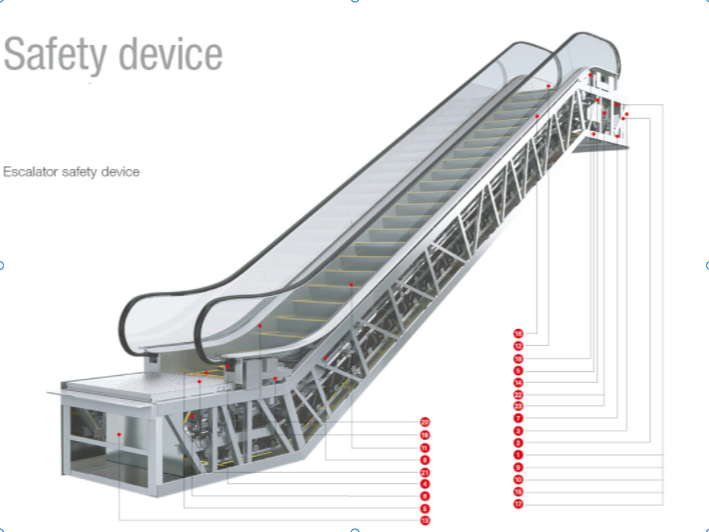

Standard safety device
1.Lack of phase, error phase protection
When lack phase or error phase has been checked out, the escalator (auto-walk) will automatically stop the operation.
2.Motor over-load protection
When the current exceeds 115% during starting, the escalator will automatically stop the operation.
3.Electrical appliance loop protection
It offers the automatic circuit disconnection device to protect the circuit and main components of the escalator (auto-walk).

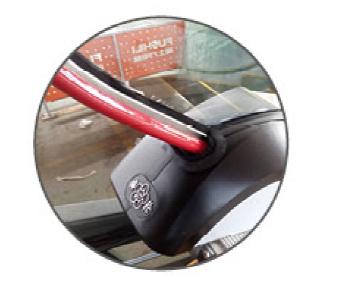

4.Handrail inlet protection
When some foreign substance has been clipped in the handrail inlet, the escalator (auto-walk) will automatically stop the operation.
5.Comb plate safety device
When some foreign substance has been clipped in or between the combs, the escalator (auto-walk) will automatically stop the operation.
6.Step sagging protection device
When there is abnormal step bending, the escalator (auto-walk) will stop the operation before the step entering into the comb plate.

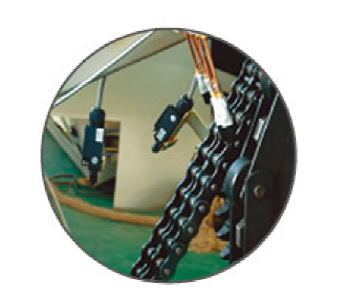

7.Broken drive-chain safety device
When the drive-chain has been over-stretched or it is broken, the escalator (auto-walk) will automatically stop the operation.
8.Broken step chain protection
When the step (pallet) chain has been over-stretched or it is broken, the escalator (auto-walk) will automatically stop the operation.
9.Over-speed protection
When there is over-speed to the escalator (auto-walk), it will automatically stop the operation.
10.Direction reversal protection
When it comes the unintentional reversal of the direction of travel, the escalator (auto-walk) will automatically stop the operation.
11.Security line
The yellow synthetic resin security line is located in the front position and two sides of the escalator tread so that the passengers will not need in-between the edge of the adjacent step. The security line on both sides of the step is higher than tread surface. (The auto-walk offers the selective yellow spray-painted security line.)
12.Emergency button
When the button has been pressed down, the escalator (auto-walk) will stop the operation.
Additional safety devices
13.Upper and lower protection plates in the machine room
During inspection and maintenance, it could prevent operators from being involved in stairs or foot boards.
14.Brake protection
When the electric brake function fails after being tested, the brake function goes into effect by the safety device through the spring resilience action. In this way, the escalator (auto-walk) stops the operation.
15.Safety inspection switch
It is a safety device to prevent from the escalator starting during the inspection and maintenance.
16.Illumination
Illumination exists in the upper and lower ends of the escalator, in the lower part of the step in order to remind passengers of the security matters.
17.Alarm bell starting device
The alarm bell rings when it starts the escalator in order to remind the passengers of the security matters.
18.Cutoff device for handrail breakage
When the handrail is broken, the escalator will automatically stop the operation.
19.Step & pallet missing protection
Under normal mode, when detect the missing of step or pallet, escalator or moving walk will stop working.
When it is under inspection mode, not detecting.
20.Handrail speed monitor
Under normal mode, when the handrail deviation of more than 15% to the actual speed for more than 15s, escalator or moving walk will stop working.
When it is under inspection mode, not detecting.
21.Floor plate open protection
Under normal mode, when the floor plate is open, the escalator & moving walk will stop working.
Under inspection mode, this switch will be initiated by the stop button on the manual controller.
22.Motor brake lifting detecting
After starting the escalator & moving walk, if there is no lifting of the brake system, escalator or moving walk will stop working.
23.Motor hand winding device protection
When the hand winding device is used in the motor, the escalator and moving walk with stop working.
24.Step brake distance detect device
When the brake distance over 1.2m, the system will stop working.
25.Skirting brush (standard for escalators, optional for moving walks)
Should follow GB16899-2011 §5.5.3.4.6 rules.
Optional safety device
26. Additional brake
It prevents from the escalator slide and ensures the human security in case of the drive chain breakage or the out-of-order of the brake. (It should be allocated with the emergency brake H > 6m.)
27. Comb illumination
The illumination has been installed in the skirt panel near the comb plate, it offers the lighting for the step and the comb plate. It is more convenient for the passengers to up and down the escalator.
28. Conversion function
It can adopt variable frequency control or the automatic starting mode to fulfill the energy-saving.
29. Heating device
Each escalator usually installs three heating devices. One is beside the host in the upper machine room, it mainly heats the host. The second is installed in the mid escalator. And the third is in the lower part. It mainly heats the whole escalator.
30. Fire linkage
When this device comes into action, it can stop the escalator (Passenger conveyor) operation. It is installed near the escalator (Passenger conveyor).
31.Lower machine room drain
When it exceeds the standard water level in the lower machine room, the automatic drain system will start accordingly. (outdoor type)
Rational Civil Engineering Layout · Precise Integration with Building Structures

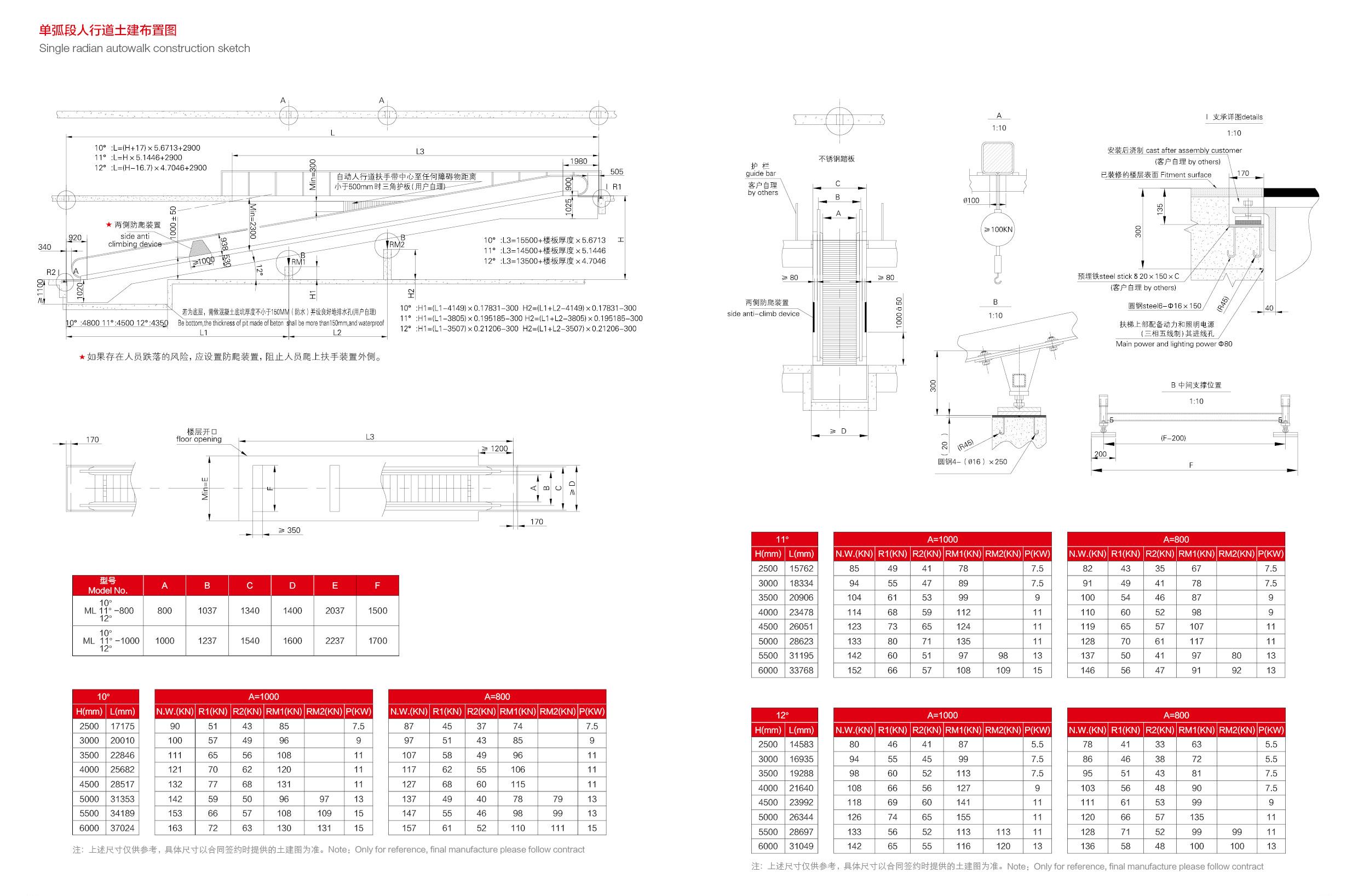

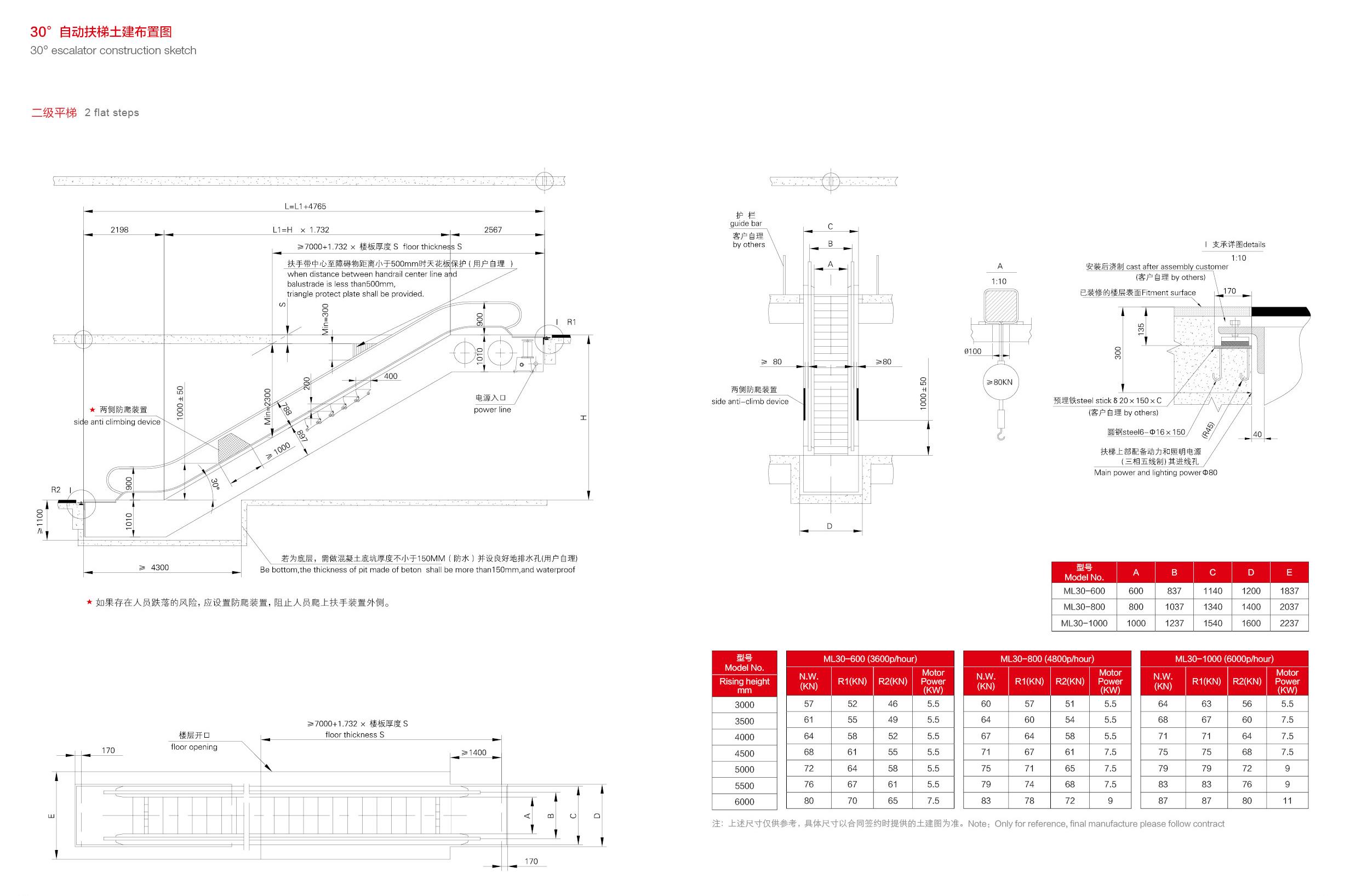

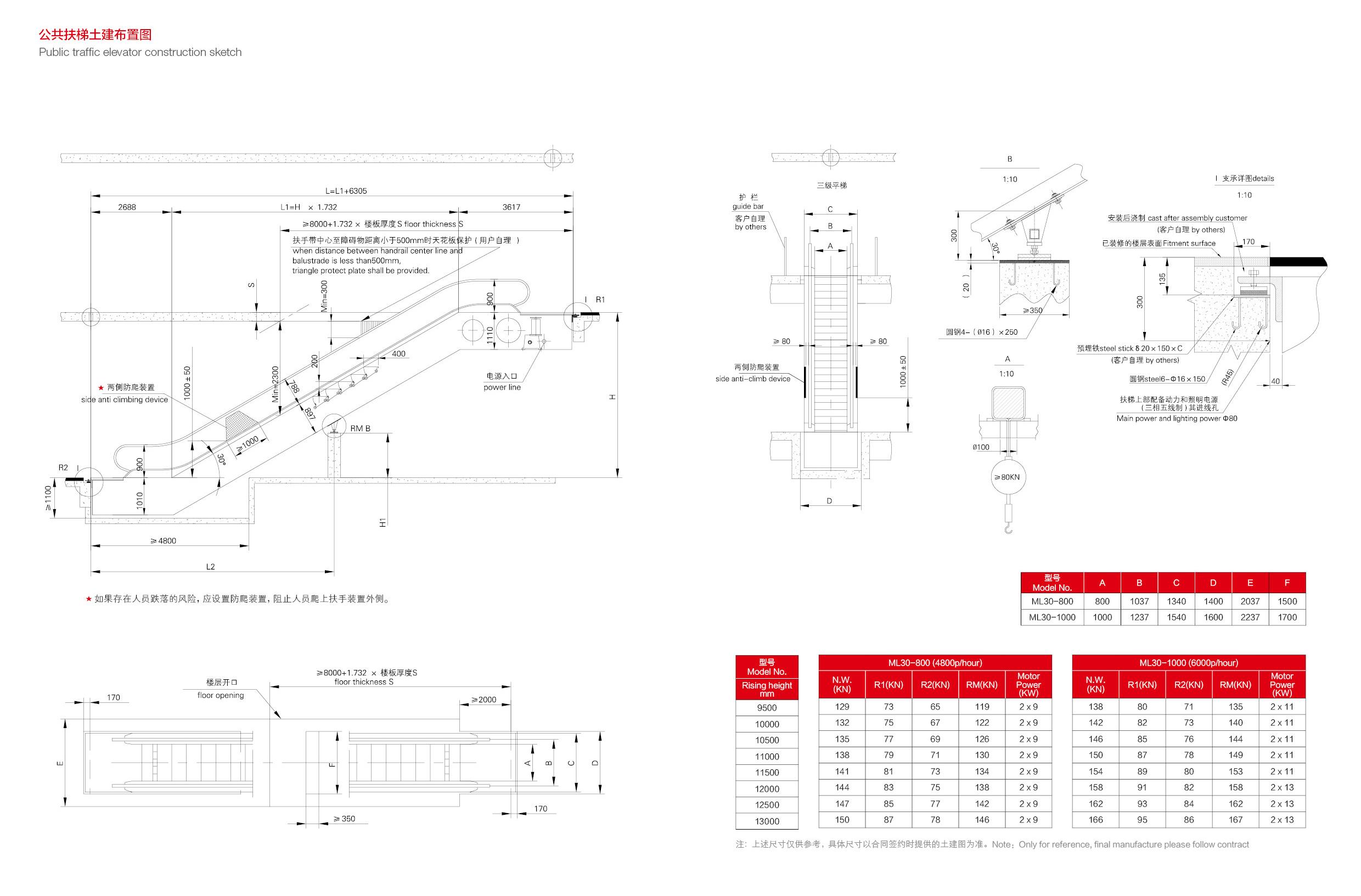

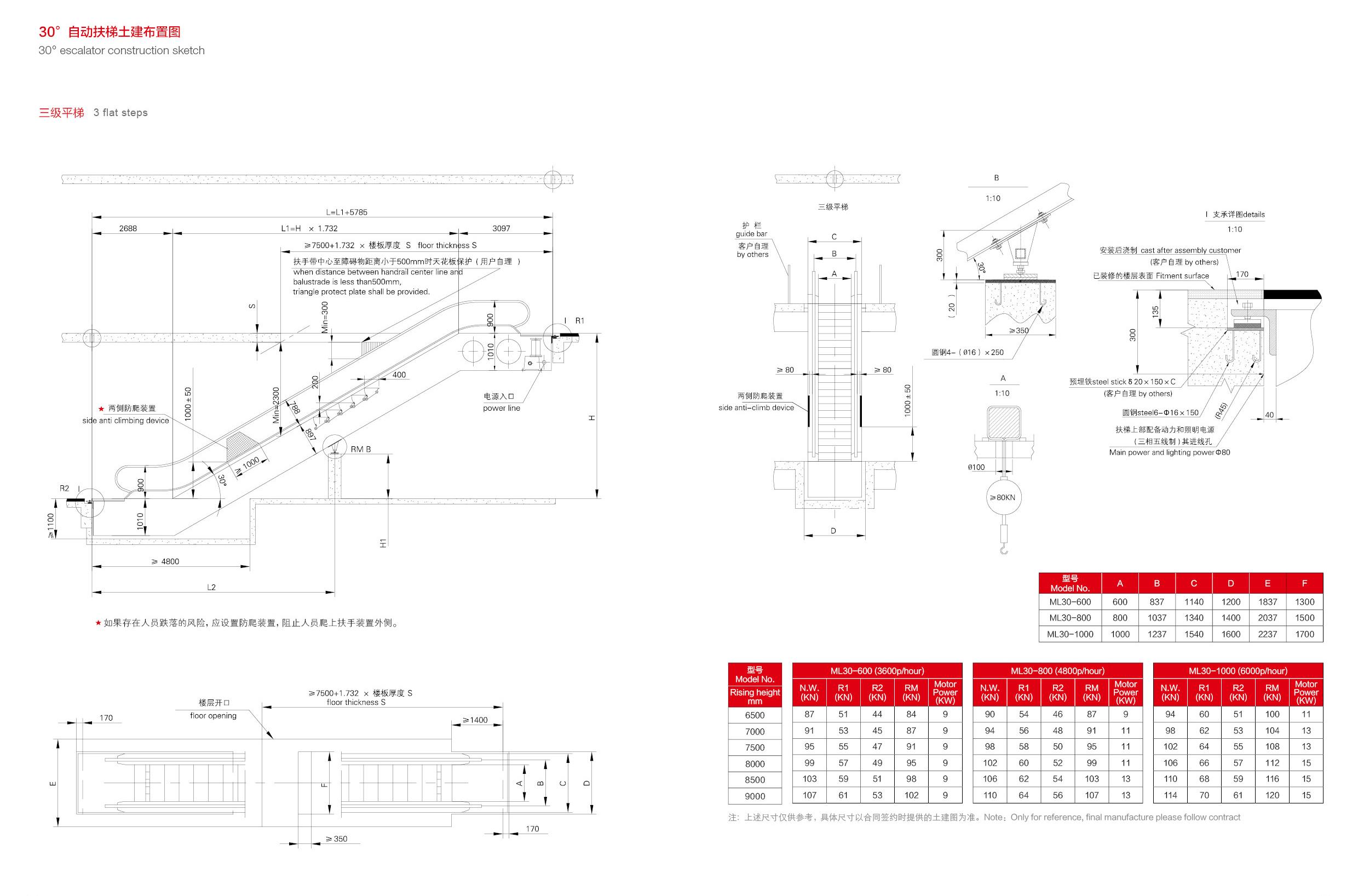

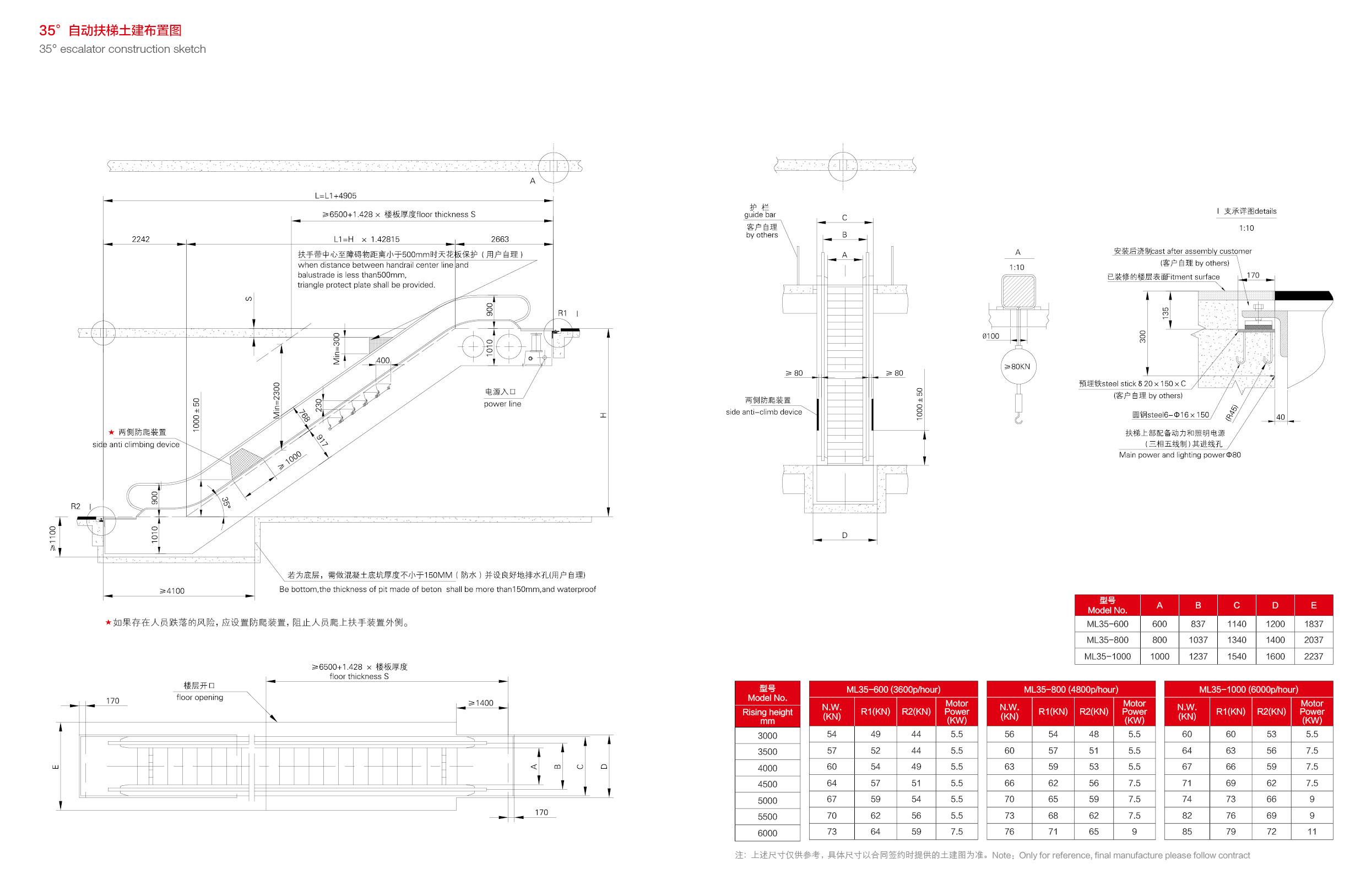

To ensure efficient integration between equipment and building structures, we provide complete public escalator civil engineering layout drawings and technical support, including:
Scientific coordination between civil works and equipment design effectively reduces on-site construction difficulty while improving installation efficiency and overall aesthetics.
Diverse and Feasible Layout Solutions
To accommodate different passenger flow organization requirements, a variety of proven and practical layout solutions are available:

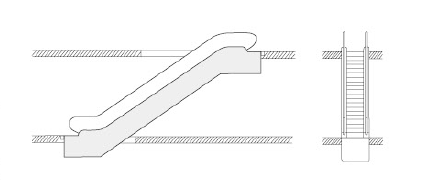

Single unit arrangement
particularly suitable for transporting passengers between two floor levels,where passenger flow is in one direction,althoughon-demand starting can be utilized to allow travel in both two directions,(e,g,up in the morning and down in the evening).

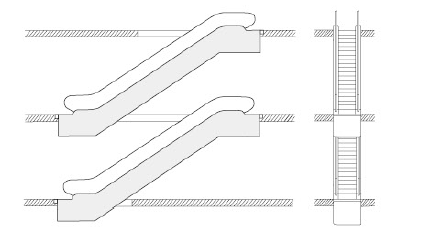

Continuous arrangement(one travel direction)
Mainly suitable for small department stores,between three sales floor levels,More space required than the interrupted arrangement.

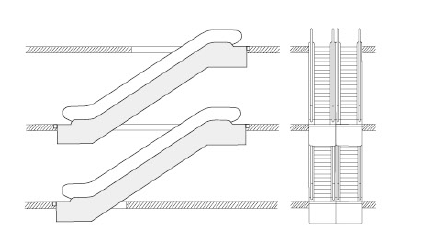

Interrupted arrangement(one trauel direction)
Passengers have to make a short detour to the next escaletor, strategically placed displays alongside the route of this detour can help to increase sales by encouraging impulse buying.
Multi-level parallel arrangement(interrupted traffic,two travel directions)
Mainly used in department stores and public buildings with a heavy traffic flow,When there are three or more escalators,the possibility to reverse the direction of travelof both escalators depending on the usage or traffic flow,this arrangement is economical,since no decorative truss cladding required.

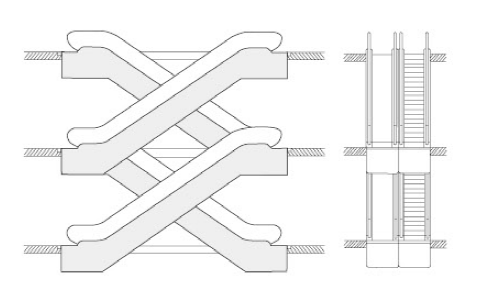

Multi-level criss -cross arrangement(continuous traffic flow,two travel dirctions)
Mainly used in major department stores,public buildings and public transportbuildings,reduce congestion at the landing area by separating upwards and downwardstravelling passengers.
These solutions can be flexibly applied to various spatial structures and traffic demands, ensuring efficient, safe, and orderly passenger movement.
From product technology and functional configuration to safety systems, civil engineering layouts, and overall planning, our escalators and moving walks are not merely transportation devices, but reliable, long-term system solutions for public spaces.
Through professional design and high-standard manufacturing, we provide safer, more efficient, and more durable vertical and horizontal transportation support for modern public transportation systems and architectural environments.
