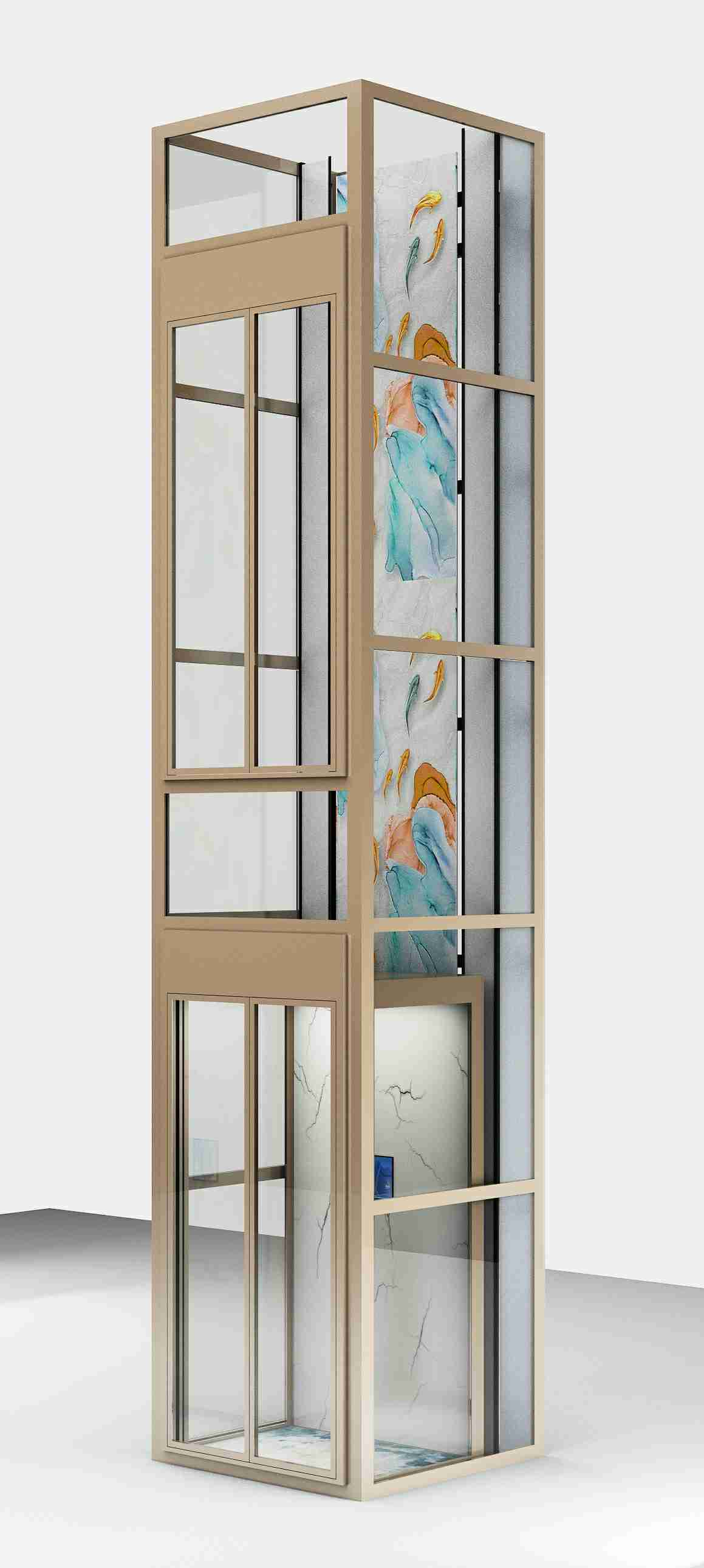

Small Home Elevator Lift 2-3 Person Backpack Elevator
The backpack-type suspension load-bearing method involves installing a guide rail on one side of the elevator and a load-bearing support frame at the bottom to support the entire weight of the moving car. The backpack-type elevator makes more efficient use of the shaft space, allowing for a larger car size within the same shaft dimensions. Additionally, it enables three-sided door openings
Small Home Elevator Lift 2-3 Person Backpack Elevator
The backpack-type suspension load-bearing method sets a guide rail on one side of the elevator and a support frame at the bottom to bear the weight of the entire car as it moves up and down. The backpack-type elevator has a higher shaft space utilization rate, allowing for the installation of a larger car within the same shaft dimensions. Additionally, it can achieve three-sided door openings.
Backpack Elevators Main Parameters
| counterweight position | 2-3 person |
| postposition | Backpack Type |
| Rated Speed | 0.3m/s |
| Max.Lift Height | 12m |
| Traction Machine Type | Permanent magnet synchronous gearless traction machine |
| Machine Room | Machine roomless |
| Min Top Height | 2600mm |
| Min Floor Spacing | 2400mm |
| Depth of Foundation Pit | 0/100mm |
| Power Supply | AC220V 50Hz(380V Option) |
| backpack elevator shaft(Can be customized according to customer needs) | |||
| counterweight position | Aluminum shaft reservation size width*depth(mm) | Car size width*depth(mm) | Net door size width*depth(mm) |
| rear side | 1550*920 | 900*800*2050 | 650*2000 |
| 1650*920 | 1000*800*2050 | 750*2000 | |
| 1650*1020 | 1000*900*2050 | 750*2000 | |
| sidebar | 1450*1020 | 800*900*2050 | 700*2000 |
| 1450*1120 | 800*1000*2050 | 700*2000 | |
